㈜티알엘코리아만의 플로어, 곡면, 원형 등 맞춤 커스텀 설치가 가능한 다양한 형태의 LED 디스플레이
▼

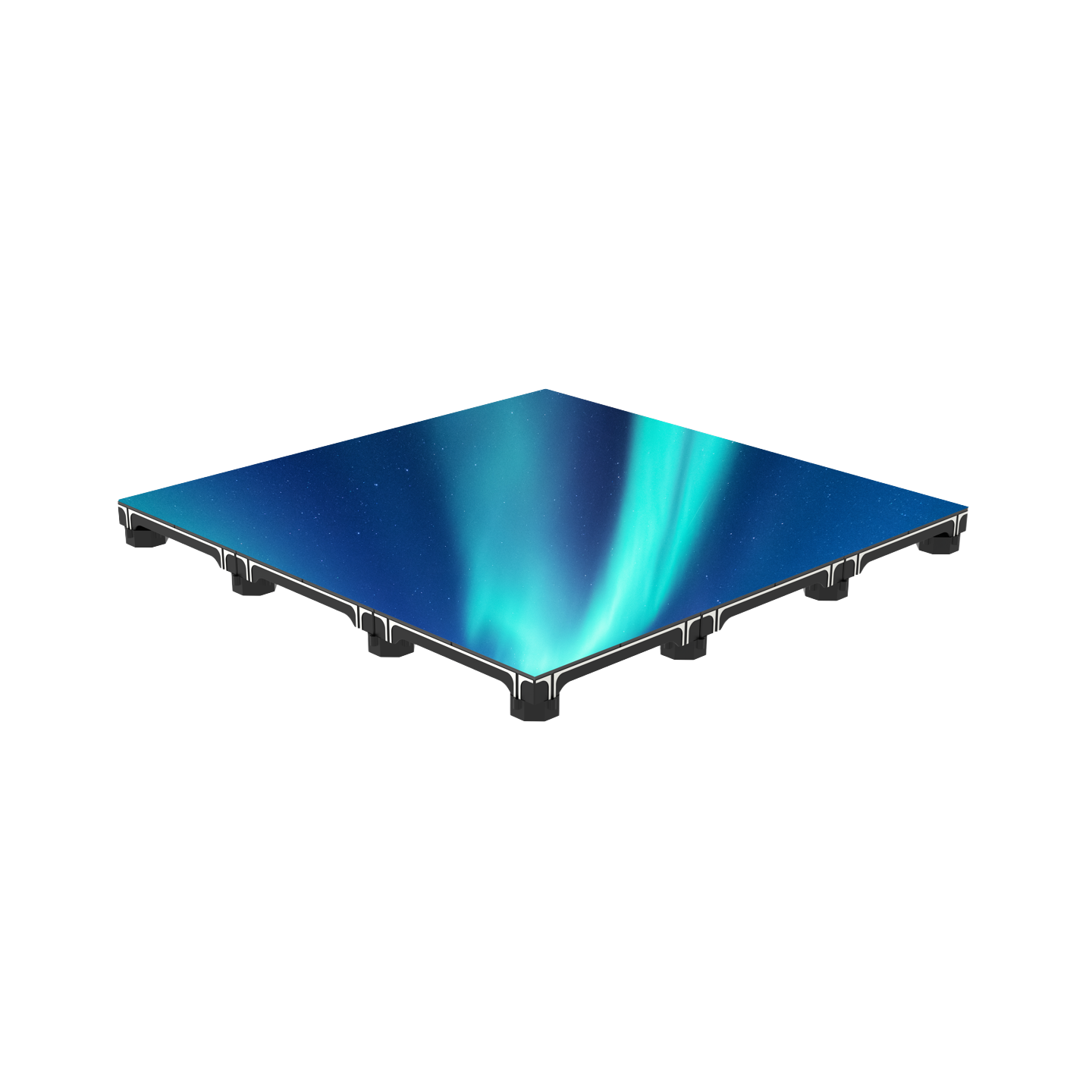

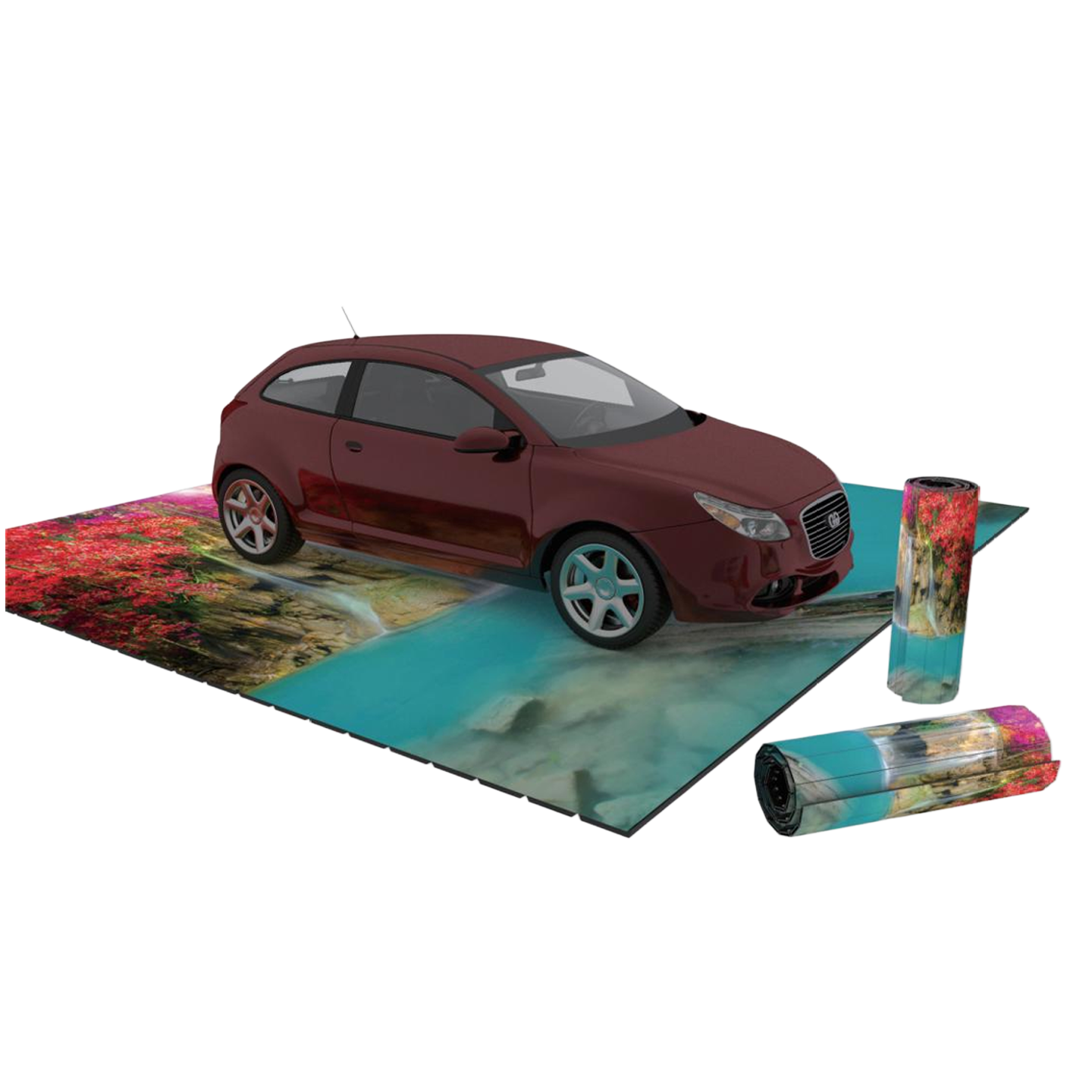

Floor LED는 고강도 강화유리 또는 알루미늄 프레임 위에 LED 모듈을 탑재하여, 직접 밟고 올라설 수 있는 내하중성과 시각적 몰입감을 동시에 제공하는 차세대 디스플레이입니다. 표면에는 미끄럼 방지 처리가 적용되어 있으며, 방수·방진 기능을 갖춰 실내외 환경에서도 안정적인 운영이 가능합니다. 모듈형 구조로 설계되어 자유로운 확장과 유지보수가 용이하며, 인터랙션 센서 옵션을 통해 사용자 움직임에 실시간 반응하는 콘텐츠 구현도 지원합니다. 전시, 공연, 상업공간 등 다양한 산업 현장에서 활용되고 있습니다.
Specifications
| Pixel Pitch | 1.9mm | Brightness(Nits) | ≥800 |
|---|---|---|---|
| LED type | SMD1515 | Color temperature(K) | 1000-18500 Adjustable |
| Density(Dot/sqm) | 262,144 | Viewing angle | H:±160°，V：±160° |
| Module Resolution | 128×128 | Viewing distance | 3-50m |
| Module size | 250×250 | Contrast ratio | 10,000 : 1 |
| Cabinet size | 500×500×53 | Module Qantity (WXH) | 2×2 |
| Frame frequency | 50/60 | Drive Mode | 32 Scan |
| Gray level | 16 bit | Refresh rate(Hz) | 3840 |
| Cabinet resolution | 256×256 | Power Consumption | Maximum: 800W/m² Average: 200-300W/m² |
| Maintenance | Front/rear | Cabinet material | Die-casting aluminum |
| Protection Level | IP65 | Power input | AC90-264V,47-63Hz |
| Working temperature/humidity(℃/RH) | -20~60 ℃/10%~85% | Stroage temperature/humidity(℃/RH) | -20~60 ℃/10%~85% |
| Cabinet weight(kg) | 11 | Certifications | CCC/CE/RoHS /FCC/CB/TUV/IEC |
Specifications
| Pixel Pitch | 2.5mm | Brightness(Nits) | ≥800 |
|---|---|---|---|
| LED type | SMD1515 | Color temperature(K) | 1000-18500 Adjustable |
| Density(Dot/sqm) | 160,000 | Viewing angle | H:±160°，V：±160° |
| Module Resolution | 100×100 | Viewing distance | 3-50m |
| Module size | 250×250 | Contrast ratio | 10,000 : 1 |
| Cabinet size | 500×500×53 | Module Qantity (WXH) | 2×2 |
| Frame frequency | 50/60 | Drive Mode | 25 Scan |
| Gray level | 16 bit | Refresh rate(Hz) | 3840 |
| Cabinet resolution | 192×192 | Power Consumption | Maximum: 800W/m² Average: 200-300W/m² |
| Maintenance | Front/rear | Cabinet material | Die-casting aluminum |
| Protection Level | IP65 | Power input | AC90-264V,47-63Hz |
| Working temperature/humidity(℃/RH) | -20~60 ℃/10%~85% | Stroage temperature/humidity(℃/RH) | -20~60 ℃/10%~85% |
| Cabinet weight(kg) | 11 | Certifications | CCC/CE/RoHS /FCC/CB/TUV/IEC |
Specifications
| Pixel Pitch | 2.604mm | Brightness(Nits) | ≥800 |
|---|---|---|---|
| LED type | SMD1515 | Color temperature(K) | 1000-18500 Adjustable |
| Density(Dot/sqm) | 147,456 | Viewing angle | H:±160°，V：±160° |
| Module Resolution | 96×96 | Viewing distance | 3-50m |
| Module size | 250×250 | Contrast ratio | 10,000 : 1 |
| Cabinet size | 500×500×53 | Module Qantity (WXH) | 2×2 |
| Frame frequency | 50/60 | Drive Mode | 16 Scan |
| Gray level | 16 bit | Refresh rate(Hz) | 3840 |
| Cabinet resolution | 96×96 | Power Consumption | Maximum: 800W/m² Average: 200-300W/m² |
| Maintenance | Front/rear | Cabinet material | Die-casting aluminum |
| Protection Level | IP65 | Power input | AC90-264V,47-63Hz |
| Working temperature/humidity(℃/RH) | -20~60 ℃/10%~85% | Stroage temperature/humidity(℃/RH) | -20~60 ℃/10%~85% |
| Cabinet weight(kg) | 11 | Certifications | CCC/CE/RoHS /FCC/CB/TUV/IEC |
Specifications
| Pixel Pitch | 3.91mm | Brightness(Nits) | ≥800 |
|---|---|---|---|
| LED type | SMD2020 | Color temperature(K) | 1000-18500 Adjustable |
| Density(Dot/sqm) | 65,536 | Viewing angle | H:±160°，V：±160° |
| Module Resolution | 64×64 | Viewing distance | 3-50m |
| Module size | 250×250 | Contrast ratio | 10,000 : 1 |
| Cabinet size | 500×500×53 | Module Qantity (WXH) | 2×2 |
| Frame frequency | 50/60 | Drive Mode | 16 Scan |
| Gray level | 16 bit | Refresh rate(Hz) | 3840 |
| Cabinet resolution | 64×64 | Power Consumption | Maximum: 800W/m² Average: 200-300W/m² |
| Maintenance | Front/rear | Cabinet material | Die-casting aluminum |
| Protection Level | IP65 | Power input | AC90-264V,47-63Hz |
| Working temperature/humidity(℃/RH) | -20~60 ℃/10%~85% | Stroage temperature/humidity(℃/RH) | -20~60 ℃/10%~85% |
| Cabinet weight(kg) | 11 | Certifications | CCC/CE/RoHS /FCC/CB/TUV/IEC |

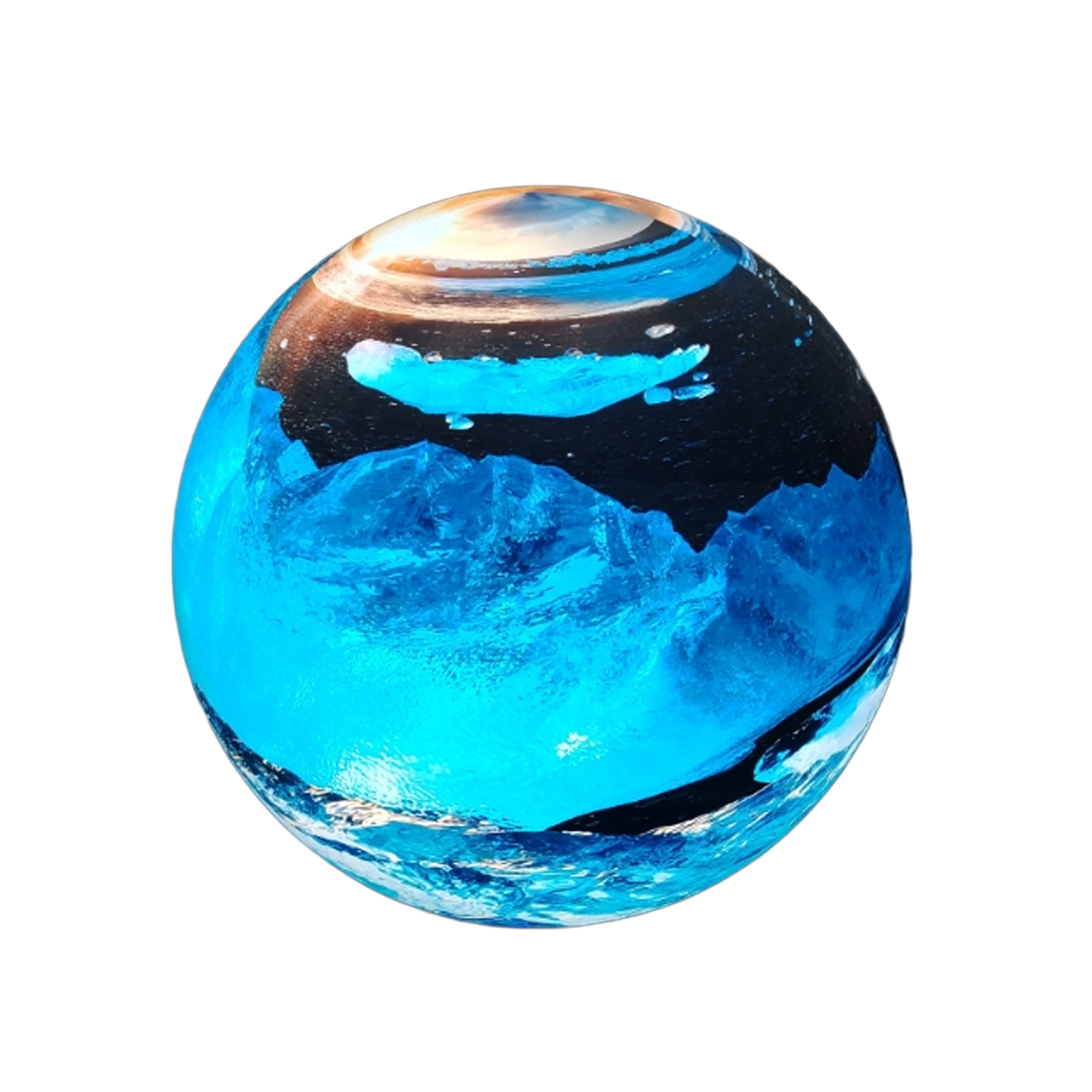

Ball LED는 각 픽셀이 초소형 LED로 구성된 자발광 디스플레이 기술을 바탕으로, 곡면 구조를 따라 구현된 구형(球形) 디스플레이입니다. 일반적인 평면 LED와 달리 모든 방향에서 콘텐츠를 확인할 수 있는 360도 전방위 시야각을 제공하여, 관객의 몰입도를 극대화하고 차별화된 공간 연출이 가능합니다. 실내외 설치가 가능하며, 공공 공간, 전시장, 로비, 쇼핑몰 등에서 시선을 끌고 상징적인 효과를 극대화하기 위해 활용됩니다.
Specifications
| Pixel Pitch | 1.87mm | Power Consumption | Maximum: 450W/m² Average: 150W/m² |
|---|---|---|---|
| LED Type | SMD1212 | Refresh Rate | 1,920-3,840Hz |
| Mass Production size | 1.5 | Gray Scale | 12-16bit |
| Brightness | 800 | Certifications | CE/ETL/FCC/RoHS |
Specifications
| Pixel Pitch | 2mm | Power Consumption | Maximum: 450W/m² Average: 150W/m² |
|---|---|---|---|
| LED Type | SMD1212/1515 | Refresh Rate | 1,920-3,840Hz |
| Mass Production size | 0.5/1/1.2/1.5/2/2.5/3/4 | Gray Scale | 12-16bit |
| Brightness | 800 | Certifications | CE/ETL/FCC/RoHS |
Specifications
| Pixel Pitch | 2.5mm | Power Consumption | Maximum: 450W/m² Average: 150W/m² |
|---|---|---|---|
| LED Type | SMD1515 | Refresh Rate | 1,920-3,840Hz |
| Mass Production size | 0.3/1/1.5/2 | Gray Scale | 12-16bit |
| Brightness | 800 | Certifications | CE/ETL/FCC/RoHS |
Specifications
| Pixel Pitch | 3mm | Power Consumption | Maximum: 450W/m² Average: 150W/m² |
|---|---|---|---|
| LED Type | SMD1515 | Refresh Rate | 1,920-3,840Hz |
| Mass Production size | 1.2/1.5/1.6/1.8/2/2.6/3/11 | Gray Scale | 12-16bit |
| Brightness | 800 | Certifications | CE/ETL/FCC/RoHS |
Specifications
| Pixel Pitch | 4mm | Power Consumption | Maximum: 450W/m² Average: 150W/m² |
|---|---|---|---|
| LED Type | SMD2121 | Refresh Rate | 1,920-3,840Hz |
| Mass Production size | 1/1.5/1.8/2.2/2.5/3.4 5/7.5/8.25/17 | Gray Scale | 12-16bit |
| Brightness | 800 | Certifications | CE/ETL/FCC/RoHS |
| Pixel Pitch | 4.8mm | Power Consumption | Maximum: 800W/m² Average: 350W/m² |
|---|---|---|---|
| LED Type | SMD1415 | Refresh Rate | 1,920-3,840Hz |
| Mass Production size | 1.52/2/4 | Gray Scale | 12-16bit |
| Brightness | 5,000 | Certifications | CE/ETL/FCC/RoHS |
| Pixel Pitch | 5mm | Power Consumption | Maximum: 800W/m² Average: 350W/m² |
|---|---|---|---|
| LED Type | SMD1921 | Refresh Rate | 1,920-3,840Hz |
| Mass Production size | 2.5 | Gray Scale | 12-16bit |
| Brightness | 5,000 | Certifications | CE/ETL/FCC/RoHS |
| Pixel Pitch | 6mm | Power Consumption | Maximum: 800W/m² Average: 350W/m² |
|---|---|---|---|
| LED Type | SMD1921 | Refresh Rate | 1,920-3,840Hz |
| Mass Production size | 2/3 | Gray Scale | 12-16bit |
| Brightness | 5,000 | Certifications | CE/ETL/FCC/RoHS |
| Pixel Pitch | 8mm | Power Consumption | Maximum: 800W/m² Average: 350W/m² |
|---|---|---|---|
| LED Type | SMD2727 | Refresh Rate | 1,920-3,840Hz |
| Mass Production size | 5 | Gray Scale | 12-16bit |
| Brightness | 5,000 | Certifications | CE/ETL/FCC/RoHS |
| Pixel Pitch | 10mm | Power Consumption | Maximum: 870W/m² Average: 430W/m² |
|---|---|---|---|
| LED Type | SMD2727/3535 | Refresh Rate | 1,920-3,840Hz |
| Mass Production size | 2/4/8/11 | Gray Scale | 12-16bit |
| Brightness | 5,500 | Certifications | CE/ETL/FCC/RoHS |
