옥외형 LED
㈜티알엘코리아만의 외부 환경에서도 선명함을 유지하는 대응형 고휘도 LED 디스플레이
▼
옥외용 LED
어떤 환경에서든 선명한
자연을 견디는 선명함
자연을 견디는 선명함
옥외용 LED 디스플레이는 높은 밝기와 넓은 시야각, 내구성을 갖추어 다양한 기상 조건에서도 강력한 시인성을 제공하며, 방수 및 방진 기능을 통해 비, 눈, 바람 등에도 안정적으로 작동하는 디스플레이입니다. 특히 원거리에서도 높은 가시성을 제공하여 광고, 정보 전달, 이벤트 연출 등 다양한 용도로 활용되고 옥외 광고판, 대형 전광판, 경기장, 건물 외벽 등 실외 공간에 특화된 솔루션을 제공합니다.
높은 밝기의
고휘도 디스플레이
높은 내구성
방수 · 방진 기능 제공
160도 이상의
넓은 시야각
간편한
설치 및 유지보수
상세 모습 확인하기
- 기후와 무관한 디지털 퍼포먼스
- 옥외 환경에 최적화된 TRLKOREA만의 강력한 디스플레이 시스템
Specifications
| Pixel Pitch | 2.604mm | Brightness(Nits) | ≥45000 |
|---|---|---|---|
| LED type | SMD415 | Color temperature(K) | 1000-18500 Adjustable |
| Density(Dot/sqm) | 147,456 | Viewing angle | H:±160°，V：±160° |
| Module Resolution | 96×96 | Viewing distance | 3-50m |
| Module size | 250×250 | Contrast ratio | 10,000 : 1 |
| Cabinet size | 500×500(1000)×84.5 | Module quantity (W×H) | 2×2 2×4 |
| Frame frequency | 50/60 | Drive Mode | 恒流驱动, 1/32扫 |
| Gray level | 16 bit | Refresh rate(Hz) | 3840 |
| Cabinet resolution | 192×192 192×384 | Power Consumption | Maximum: 800W/m² Average: 200-300W/m² |
| Maintenance | Front/rear | Cabinet material | Die-casting aluminum |
| Protection Level | IP65 | Power input | AC90-264V,47-63Hz |
| Working temperature/humidity(℃/RH) | -20~60 ℃/10%~85% | Stroage temperature/humidity(℃/RH) | -20~60 ℃/10%~85% |
| Cabinet weight(kg) | 8/14.5 | Certifications | CCC/CE/RoHS /FCC/CB/TUV/IEC |
Specifications
| Pixel Pitch | 2.976mm | Brightness(Nits) | ≥45000 |
|---|---|---|---|
| LED type | SMD1415 | Color temperature(K) | 1000-18500 Adjustable |
| Density(Dot/sqm) | 112,896 | Viewing angle | H:±160°，V：±160° |
| Module Resolution | 84×84 | Viewing distance | 3-100m |
| Module size | 250×250 | Contrast | 10,000 : 1 |
| Cabinet size | 500×500(1000)×84.5 | Module quantity (W×H) | 2×2 2×4 |
| Frame frequency | 50/60 | Drive Mode | 恒流驱动, 1/28扫 |
| Gray level | 16 bit | Refresh rate(Hz) | 3840 |
| Cabinet resolution | 168×168 168×336 | Power Consumption | Maximum: 800W/m² Average: 200-300W/m² |
| Maintenance | Front/rear | Cabinet material | Die-casting aluminum |
| Protection Level | IP65 | Power input | AC90-264V,47-63Hz |
| Working temperature/humidity(℃/RH) | -20~60 ℃/10%~85% | Stroage temperature/humidity(℃/RH) | -20~60 ℃/10%~85% |
| Cabinet weight(kg) | 8/14.5 | Certifications | CCC/CE/RoHS /FCC/CB/TUV/IEC |
Specifications
| Pixel Pitch | 3.91mm | Brightness(Nits) | ≥5000 |
|---|---|---|---|
| LED type | SMD1921 | Color temperature(K) | 1000-18500 Adjustable |
| Density(Dot/sqm) | 655,36 | Viewing angle | H:±160°，V：±160° |
| Module Resolution | 64×64 | Viewing distancey | 4-150m |
| Module size | 250×250 | Contrast | 10,000 : 1 |
| Cabinet size | 500×500(1000)×84.5 | Module quantity (W×H) | 2×2 2×4 |
| Frame frequency | 50/60 | Drive Mode | 恒流驱动, 1/16扫 |
| Gray level | 16 pit | Refresh rate(Hz) | 3840 |
| Cabinet resolution | 128×128 128×256 | Power Consumption | Maximum: 800W/m² Average: 200-300W/m² |
| Maintenance | Front/rear | Cabinet material | Die-casting aluminum |
| Protection Level | IP65 | Power input | AC90-264V,47-63Hz |
| Working temperature/humidity(℃/RH) | -20~60 ℃/10%~85% | Stroage temperature/humidity(℃/RH) | -20~60 ℃/10%~85% |
| Cabinet weight(kg) | 8/14.5 | Certifications | CCC/CE/RoHS /FCC/CB/TUV/IEC |
Specifications
| Pixel Pitch | 4.81mm | Brightness(Nits) | ≥5000 |
|---|---|---|---|
| LED type | SMD1921 | Color temperature(K) | 1000-18500 Adjustable |
| Density(Dot/sqm) | 43,264 | Viewing angle | H:±160°，V：±160° |
| Module Resolution | 64×64 | Viewing distancey | 4-150m |
| Module Size | 250×250 | Contrast | 10,000 : 1 |
| Cabinet size | 500×500(1000)×84.5 | Module quantity (W×H) | 2×2 2×4 |
| Frame frequency | 50/60 | Drive Mode | 恒流驱动, 1/13扫 |
| Gray level | 16 pit | Refresh rate(Hz) | 3840 |
| Cabinet resolution | 104×104 104×208 | Power Consumption | Maximum: 800W/m² Average: 200-300W/m² |
| Maintenance | Front/rear | Cabinet material | Die-casting aluminum |
| Protection Level | IP65 | Power input | AC90-264V,47-63Hz |
| Working temperature/humidity(℃/RH) | -20~60 ℃/10%~85% | Stroage temperature/humidity(℃/RH) | -20~60 ℃/10%~85% |
| Cabinet weight(kg) | 8/14.5 | Certifications | CCC/CE/RoHS /FCC/CB/TUV/IEC |
Specifications
| Pixel Pitch | 4.81mm | Brightness(Nits) | ≥5000 |
|---|---|---|---|
| LED type | SMD1921 | Color temperature(K) | 1000-18500 Adjustable |
| Density(Dot/sqm) | 43,264 | Viewing angle | H:±160°，V：±160° |
| Module Resolution | 64×64 | Viewing distancey | 4-150m |
| Module Size | 250×250 | Contrast | 10,000 : 1 |
| Cabinet size | 500×500(1000)×84.5 | Module quantity (W×H) | 2×2 2×4 |
| Frame frequency | 50/60 | Drive Mode | 恒流驱动, 1/13扫 |
| Gray level | 16 pit | Refresh rate(Hz) | 3840 |
| Cabinet resolution | 104×104 104×208 | Power Consumption | Maximum: 800W/m² Average: 200-300W/m² |
| Maintenance | Front/rear | Cabinet material | Die-casting aluminum |
| Protection Level | IP65 | Power input | AC90-264V,47-63Hz |
| Working temperature/humidity(℃/RH) | -20~60 ℃/10%~85% | Stroage temperature/humidity(℃/RH) | -20~60 ℃/10%~85% |
| Cabinet weight(kg) | 8/14.5 | Certifications | CCC/CE/RoHS /FCC/CB/TUV/IEC |
Specifications
| Pixel Pitch | 4.81mm | Brightness(Nits) | ≥5000 |
|---|---|---|---|
| LED type | SMD1921 | Color temperature(K) | 1000-18500 Adjustable |
| Density(Dot/sqm) | 43,264 | Viewing angle | H:±160°，V：±160° |
| Module Resolution | 64×64 | Viewing distancey | 4-150m |
| Module Size | 250×250 | Contrast | 10,000 : 1 |
| Cabinet size | 500×500(1000)×84.5 | Module quantity (W×H) | 2×2 2×4 |
| Frame frequency | 50/60 | Drive Mode | 恒流驱动, 1/13扫 |
| Gray level | 16 pit | Refresh rate(Hz) | 3840 |
| Cabinet resolution | 104×104 104×208 | Power Consumption | Maximum: 800W/m² Average: 200-300W/m² |
| Maintenance | Front/rear | Cabinet material | Die-casting aluminum |
| Protection Level | IP65 | Power input | AC90-264V,47-63Hz |
| Working temperature/humidity(℃/RH) | -20~60 ℃/10%~85% | Stroage temperature/humidity(℃/RH) | -20~60 ℃/10%~85% |
| Cabinet weight(kg) | 8/14.5 | Certifications | CCC/CE/RoHS /FCC/CB/TUV/IEC |
Specifications
| Pixel Pitch | 5.95mm | Brightness(Nits) | ≥5000 |
|---|---|---|---|
| LED type | SMD2727 | Color temperature(K) | 1000-18500 Adjustable |
| Density(Dot/sqm) | 28,224 | Viewing angle | H:±160°，V：±160° |
| Module Resolution | 42×42 | Viewing distancey | 6-200m |
| Module Size | 250×250 | Contrast | 10,000 : 1 |
| Cabinet size | 500×500(1000)×84.5 | Module quantity (W×H) | 2×2 2×4 |
| Frame frequency | 50/60 | Drive Mode | 恒流驱动, 1/7扫 |
| Gray level | 16 bit | Refresh rate(Hz) | 3840 |
| Cabinet resolution | 84×84 84×168 | Power Consumption | Maximum: 800W/m² Average: 200-300W/m² |
| Maintenance | Front/rear | Cabinet material | Die-casting aluminum |
| Protection Level | IP65 | Power input | AC90-264V,47-63Hz |
| Working temperature/humidity(℃/RH) | -20~60 ℃/10%~85% | Stroage | -20~60 ℃/10%~85% |
| Cabinet weight(kg) | 8/14.5 | Certifications | CCC/CE/RoHS /FCC/CB/TUV/IEC |

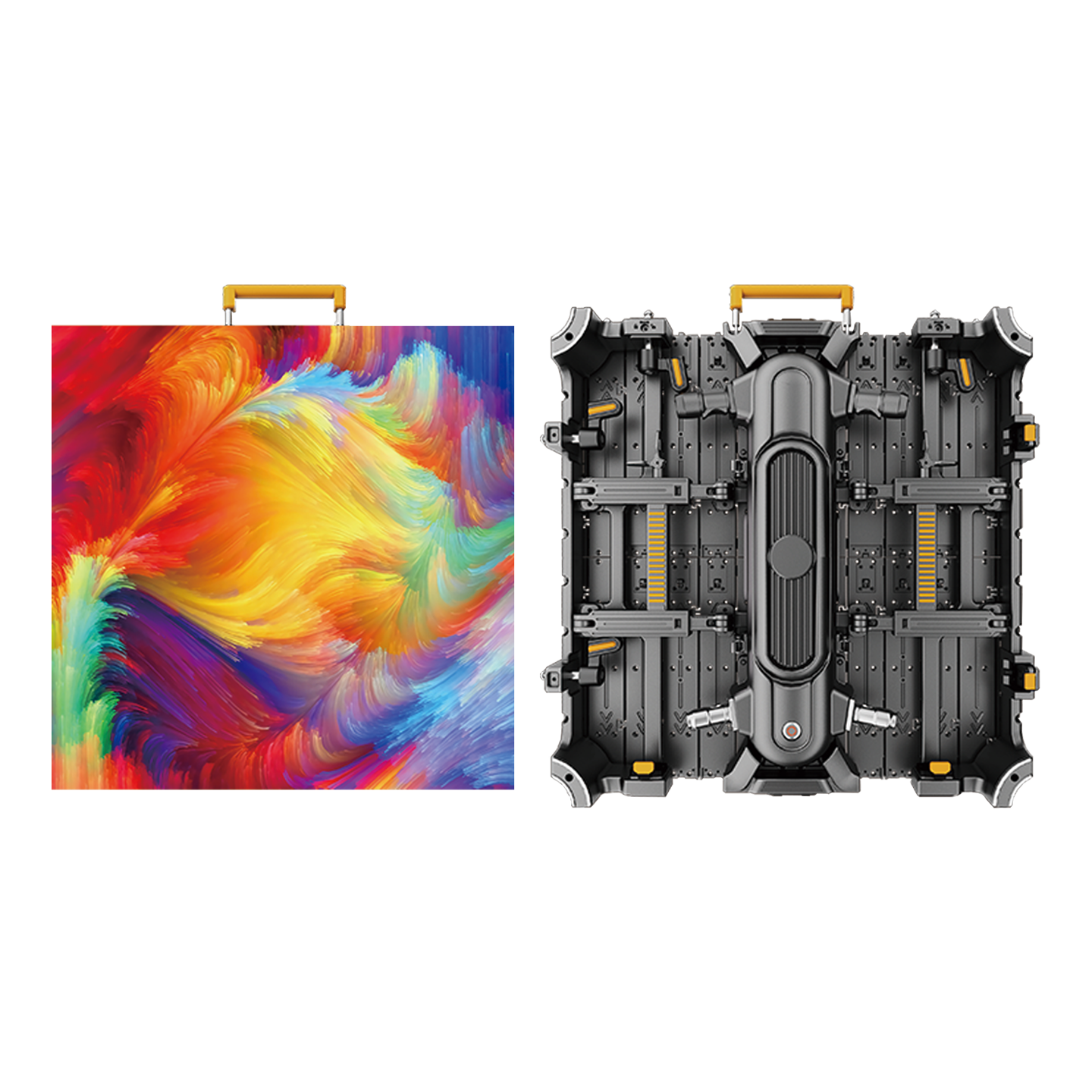

실외용 각도조절 RENTAL
실외환경을 고려한 유연한 구조
어떤 지형에 최적화
어떤 지형에 최적화
Outdoor Angle-Adjustable RENTAL은 야외 환경의 복잡한 지형과 기후 조건을 고려해 설계된 조립식 구조물입니다.
디스플레이의 시야각을 자유롭게 조정할 수 있어, 경사 지면이나 원거리 관람 등 다양한 현장 상황에 맞춰 최적의 화질을 제공합니다. 다양한 실외 변수에 대응 가능하며 풍하중을 고려한 안전 설계와 방수 방진 소재 사용으로, 설치 후에도 안정적인 운영이 가능합니다.
상세 모습 확인하기
- 각도조절로 완성되는 야외 디스플레이 퍼포먼스
- 현장 맞춤형 실외각도조절 렌탈 솔루션
Specifications
| Pixel Pitch | 3.91mm | Module weight | 0.583kg |
|---|---|---|---|
| LED type | SMD1921 | Module port | HUB75 |
| Pixel configuration | 1/1/1 | Module working voltage | 5 |
| Display resolution | 4096 | Module consumption | ≤33 |
| Every square metre module | 16 PCS | Maximum power | ≤550 |
| Equilibrium brightness | 4300-7500 | Current | 8 |
| power waste | 550-3800 W/ m² | Drive Mode | 1/16 Scan |
| luminous attenuation | ＜3% | Leakage current | ＜3mA |
| Lamp failure frequenc | ＜0.0001 | Working temperature/humidity(℃/RH) | -10~60 ℃/10%~70% |
| Display working voltage | 220V±15%/110V±15% | Power input | AC46-5HZ |
상세 모습 확인하기
Specifications
| Pixel Pitch | 3.91mm | Module weight | 0.583kg |
|---|---|---|---|
| LED type | SMD1515 | Module port | HUB75 |
| Pixel configuration | 1/1/1 | Module working voltage | 5 |
| Display resolution | 4096 | Module consumption | ≤33 |
| Every square metre module | 16 PCS | Maximum power | ≤550 |
| Equilibrium brightness | 4300-7500 | Current | 8 |
| power waste | 550-3800 W/ m² | Drive Mode | 1/16 Scan |
| luminous attenuation | ＜3% | Leakage current | ＜3mA |
| Lamp failure frequenc | ＜0.0001 | Working temperature/humidity(℃/RH) | -10~60 ℃/10%~70% |
| Display working voltage | 220V±15%/110V±15% | Power input | AC46-5HZ |
