실내형 LED
(주)티알엘코리아만의 밝기와 해상도의 최적화로 실내 공간에 특화된 고해상도 LED 디스플레이
▼

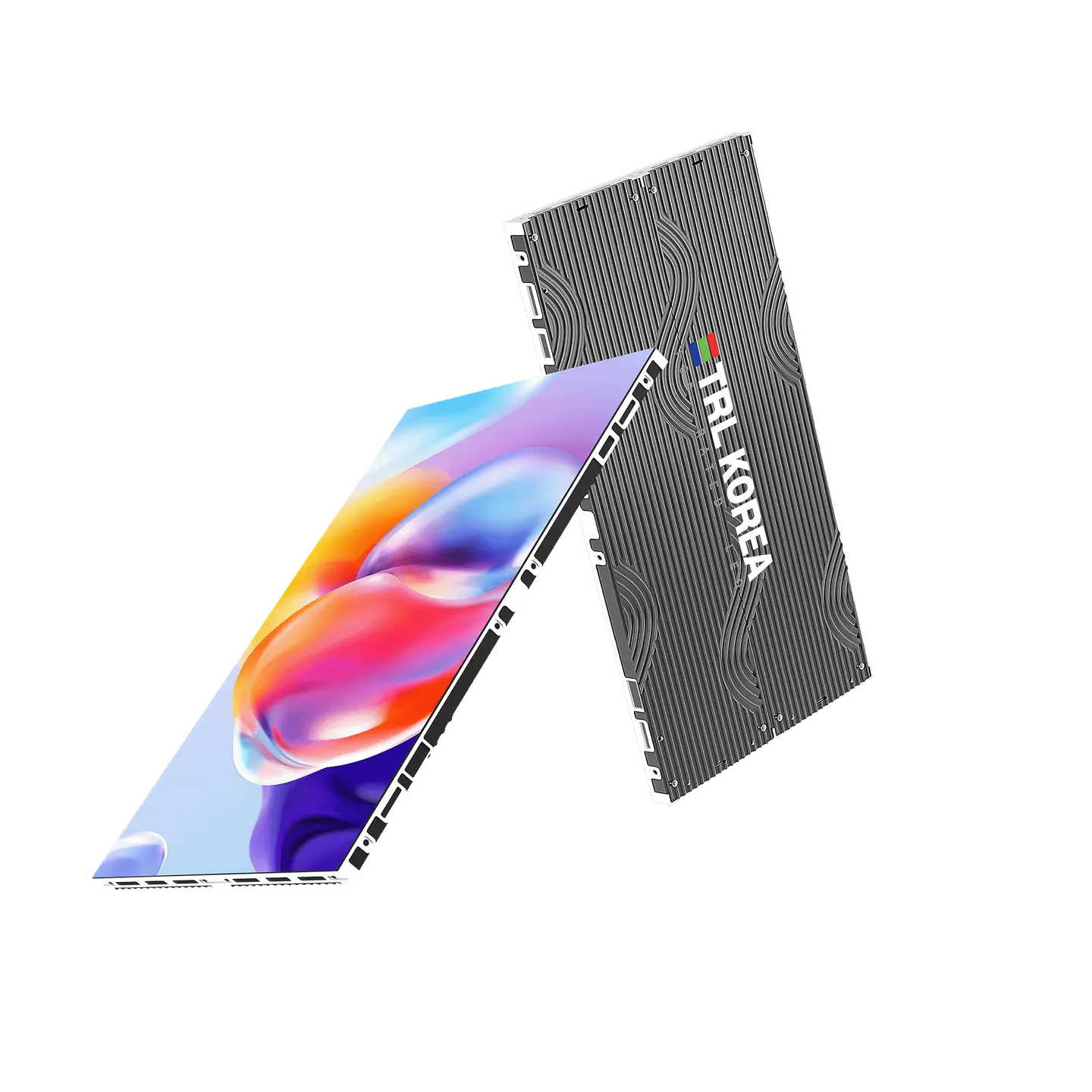

실내용 LED
실용적이며 선명한 화질
완벽한 몰입
완벽한 몰입
실내용 LED는 고해상도 디스플레이로 다양한 크기와 형태로 제작이 가능하며, 실내 환경에 최적화되어 뛰어난 색상 표현력과 실내 공간을 밝히는 디지털 비주얼 솔루션으로 선명한 화질을 제공하는 동시에 유지보수가 쉽고 설치가 간편하여 상업 및 공공장소에 널리 활용되는 실용적이고 안정적인 디스플레이입니다.
고해상도 지원으로
생생한 화질 제공
높은 명암비로
색상 표현력 우수
사용자의 요구에 맞게
맞춤형 제공 가능
160도 이상의
넓은 시야각
간편한
설치 및 유지보수
High gray high brush & Dazzling colors
- 고명암비와 고주사율을 통해 촬영 시 스캐닝 라인이 발생하지 않아, 보다 사실적이고 섬세한 디스플레이를 구현합니다.
- 생동감 넘치고 선명한 색감으로 더욱 풍부한 표현이 가능합니다.
상세 모습 확인하기
- 공간 제약 없는 설치와 유지보수
- 제한없는 공간 활용으로, 완벽한 설치와 정비가 가능하도록 설계되었습니다.
Specifications
| Pixel Pitch | 1.25mm | Brightness(Nits) | 600 |
|---|---|---|---|
| LED type | SMD1010(GOB) | Color temperature(K) | 3200-9300 Optional |
| Density(Dot/sqm) | 640,000 | Viewing angle | H:±160°，V：±160° |
| Module Resolution | 200×200 | Brightness/Color uniformity | ≥97% |
| Module Dimension | 250×250 | Contrast | 10,000 : 1 |
| Panel size | 1000×500×33 1000×250×33 750×250×33 500×250×33 | Module quantity (W×H) | 4×2 4×1 3×1 2×1 |
| Frame frequency | 50/60 | Drive Mode | 1/50 Scan |
| Gray level | 14/16 Optional | Refresh rate(Hz) | 3840 |
| Panel resolution | 800×400 800×200 600×200 400×200 | Power Consumption | Maximum: 350W/m² Average: 100-200W/m² |
| Maintenance | Front access | Cabinet material | Die-casting aluminum |
| Protection Level | IP31 | Power input | AC90-264V,47-63Hz |
| Stroage temperture/humidity(℃/RH) | -20~60 ℃/10%~85% | Working temperature/humidity(℃/RH) | -20~60 ℃/10%~85% |
| Single point brightness correction | Have | Certigicatiom | CCC/CE/RoHS /FCC/CB/TUV/IEC |
Specifications
| Pixel Pitch | 1.5625mm | Brightness(Nits) | 600 |
|---|---|---|---|
| LED type | SMD1212(GOB) | Color temperature(K) | 3200-9300 Optional |
| Density(Dot/sqm) | 409,600 | Viewing angle | H:±160°，V：±160° |
| Module Resolution | 160×160 | Brightness/Color uniformity | ≥97% |
| Module Dimension | 250×250 | Contrast | 10,000 : 1 |
| Panel size | 1000×500×33 1000×250×33 750×250×33 500×250×33 | Module quantity (W×H) | 4×2 4×1 3×1 2×1 |
| Frame frequency | 50/60 | Drive Mode | 1/40 Scan |
| Gray level | 14/16 Optional | Refresh rate(Hz) | 3840 |
| Panel resolution | 640×320 640×160 480×160 320×160 | Power Consumption | Maximum: 350W/m² Average: 100-200W/m² |
| Maintenance | Front access | Cabinet material | Die-casting aluminum |
| Protection Level | IP31 | Power input | AC90-264V,47-63Hz |
| Single point brightness correction | Have | Working temperature/humidity(℃/RH) | -20~60 ℃/10%~85% |
| Stroage temperture/humidity(℃/RH) | -20~60 ℃/10%~85% | Cert. | CCC/CE/RoHS /FCC/CB/TUV/IEC |
Specifications
| Pixel Pitch | 1.95mm | Brightness(Nits) | 800 |
|---|---|---|---|
| LED type | SMD1515 | Color temperature(K) | 3200-9300 Optional |
| Density(Dot/sqm) | 262,144 | Viewing angle | H:±160°，V：±160° |
| Module Resolution | 128×128 | Brightness/Color uniformity | ≥97% |
| Module Dimension | 250×250 | Contrast | 10,000 : 1 |
| Panel size | 1000×500×33 1000×250×33 750×250×33 500×250×33 | Module quantity (W×H) | 4×2 4×1 3×1 2×1 |
| Frame frequency | 50/60 | Drive Mode | 1/32 Scan |
| Gray level | 14/16 Optional | Refresh rate(Hz) | 3840 |
| Panel resolution | 512×256 512×128 284×128 256×128 | Power Consumption | Maximum: 350W/m² Average: 100-200W/m² |
| Maintenance | Front access | Cabinet material | Die-casting aluminum |
| Protection Level | IP31 | Power input | AC90-264V,47-63Hz |
| Single point brightness correction | Have | Working temperature/humidity(℃/RH) | -20~60 ℃/10%~85% |
| Stroage temperture/humidity(℃/RH) | -20~60 ℃/10%~85% | Cert. | CCC/CE/RoHS /FCC/CB/TUV/IEC |
Specifications
| Pixel Pitch | 2.5mm | Brightness(Nits) | 800 |
|---|---|---|---|
| LED type | SMD1515 | Color temperature(K) | 3200-9300 Optional |
| Density(Dot/sqm) | 160,000 | Viewing angle | H:±160°，V：±160° |
| Module Resolution | 100×100 | Brightness/Color uniformity | ≥97% |
| Module Dimension | 250×250 | Contrast | 10,000 : 1 |
| Panel size | 1000×500×33 1000×250×33 750×250×33 500×250×33 | Module quantity (W×H) | 4×2 4×1 3×1 2×1 |
| Frame frequency | 50/60 | Drive Mode | 1/25 Scan |
| Gray level | 14/16 Optional | Refresh rate(Hz) | 3840 |
| Panel resolution | 400×200 400×100 300×100 200×100 | Power Consumption | Maximum: 350W/m² Average: 100-200W/m² |
| Maintenance | Front access | Cabinet material | Die-casting aluminum |
| Protection Level | IP31 | Power input | AC90-264V,47-63Hz |
| Single point brightness correction | Have | Working temperature/humidity(℃/RH) | -20~60 ℃/10%~85% |
| Stroage temperture/humidity(℃/RH) | -20~60 ℃/10%~85% | Cert. | CCC/CE/RoHS /FCC/CB/TUV/IEC |
Specifications
| Pixel Pitch | 2.604mm | Brightness(Nits) | 800 |
|---|---|---|---|
| LED type | SMD1515 | Color temperature(K) | 3200-9300 Optional |
| Density(Dot/sqm) | 147,456 | Viewing angle | H:±160°，V：±160° |
| Module Resolution | 96×96 | Brightness/Color uniformity | ≥97% |
| Module Dimension | 250×250 | Contrast | 10,000 : 1 |
| Panel size | 1000×500×33 1000×250×33 750×250×33 500×250×33 | Module quantity (W×H) | 4×2 4×1 3×1 2×1 |
| Frame frequency | 50/60 | Drive Mode | 1/32 Scan |
| Gray level | 14/16 Optional | Refresh rate(Hz) | 3840 |
| Panel resolution | 384×192 384×96 288×96 200×100 | Power Consumption | Maximum: 350W/m² Average: 100-200W/m² |
| Maintenance | Front access | Cabinet material | Die-casting aluminum |
| Protection Level | IP31 | Power input | AC90-264V,47-63Hz |
| Single point brightness correction | Have | Working temperature/humidity(℃/RH) | -20~60 ℃/10%~85% |
| Stroage temperture/humidity(℃/RH) | -20~60 ℃/10%~85% | Cert. | CCC/CE/RoHS /FCC/CB/TUV/IEC |
Specifications
| Pixel Pitch | 2.976mm | Brightness(Nits) | 800 |
|---|---|---|---|
| LED type | SMD1515 | Color temperature(K) | 3200-9300 Optional |
| Density(Dot/sqm) | 112,896 | Viewing angle | H:±160°，V：±160° |
| Module Resolution | 84×84 | Brightness/Color uniformity | ≥97% |
| Module Dimension | 250×250 | Contrast | 10,000 : 1 |
| Panel size | 1000×500×33 1000×250×33 750×250×33 500×250×33 | Module quantity (W×H) | 4×2 4×1 3×1 2×1 |
| Frame frequency | 50/60 | Drive Mode | 1/28 Scan |
| Gray level | 14/16 Optional | Refresh rate(Hz) | 3840 |
| Panel resolution | 336×168 336×84 252×84 168×84 | Power Consumption | Maximum: 350W/m² Average: 100-200W/m² |
| Maintenance | Front access | Cabinet material | Die-casting aluminum |
| Protection Level | IP31 | Power input | AC90-264V,47-63Hz |
| Single point brightness correction | Have | Working temperature/humidity(℃/RH) | -20~60 ℃/10%~85% |
| Stroage temperture/humidity(℃/RH) | -20~60 ℃/10%~85% | Cert. | CCC/CE/RoHS /FCC/CB/TUV/IEC |
Specifications
| Pixel Pitch | 3.91mm | Brightness(Nits) | 800 |
|---|---|---|---|
| LED type | SMD1515 | Color temperature(K) | 3200-9300 Optional |
| Density(Dot/sqm) | 65,536 | Viewing angle | H:±160°，V：±160° |
| Module Resolution | 64×64 | Brightness/Color uniformity | ≥97% |
| Module Dimension | 250×250 | Contrast | 10,000 : 1 |
| Panel size | 1000×500×33 1000×250×33 750×250×33 500×250×33 | Module quantity (W×H) | 4×2 4×1 3×1 2×1 |
| Frame frequency | 50/60 | Drive Mode | 1/16 Scan |
| Gray level | 14/16 Optional | Refresh rate(Hz) | 3840 |
| Panel resolution | 256×128 256×64 192×64 128×64 | Power Consumption | Maximum: 350W/m² Average: 100-200W/m² |
| Maintenance | Front access | Cabinet material | Die-casting aluminum |
| Protection Level | IP31 | Power input | AC90-264V,47-63Hz |
| Single point brightness correction | Have | Working temperature/humidity(℃/RH) | -20~60 ℃/10%~85% |
| Stroage temperture/humidity(℃/RH) | -20~60 ℃/10%~85% | Cert. | CCC/CE/RoHS/FCC/CB/TUV/IEC |

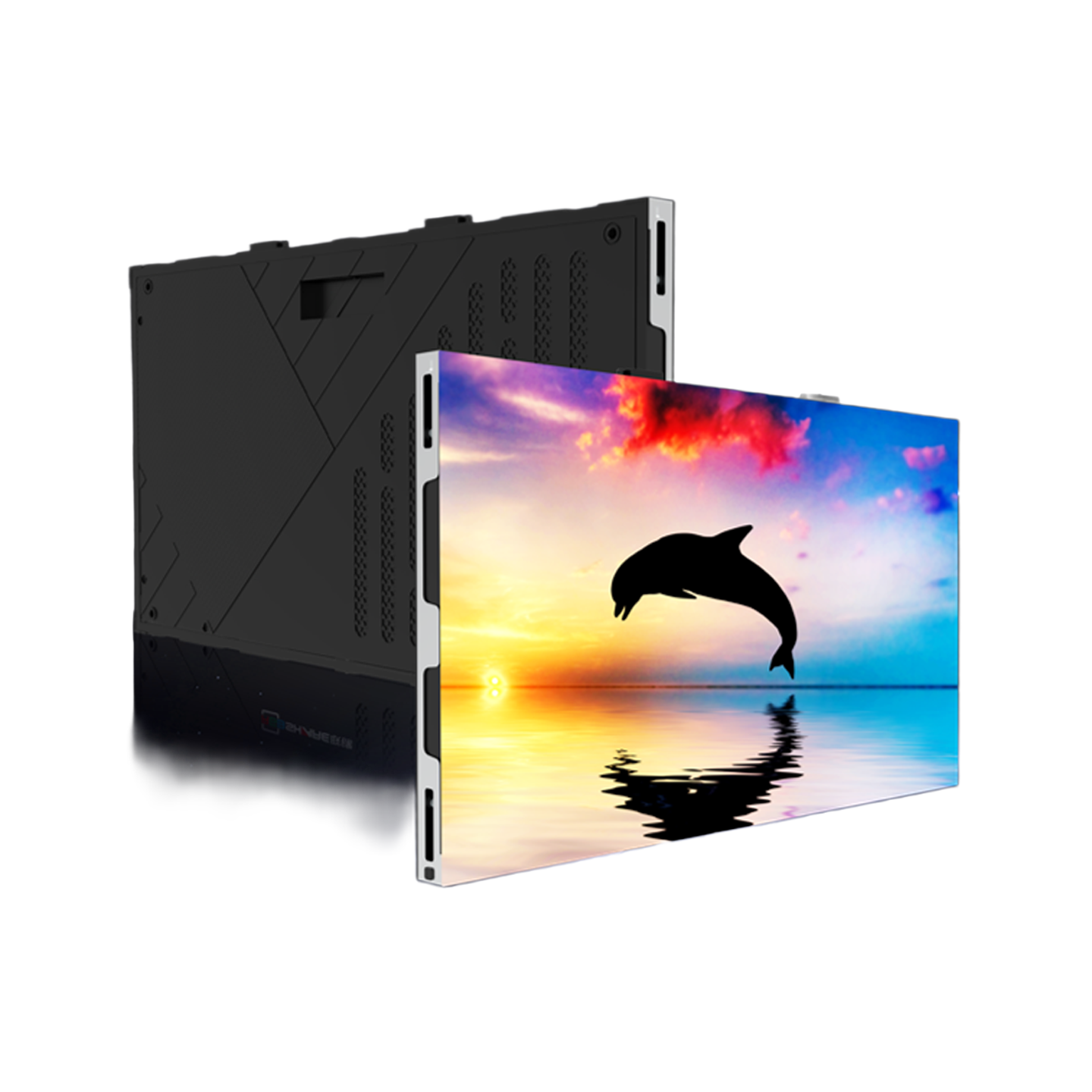

고해상도 LED
초정밀 영상 표현을 위한 선택
자유로운 확장
자유로운 확장
Fine Pitch LED는 픽셀 간격(Pitch)이 2.5mm 이하로 매우 촘촘하게 구성된 고해상도 실내용 LED 디스플레이입니다. 근거리 시청 환경에서도 선명한 화면을 구현할 수 있도록 설계되어,원하는 사이즈와 비율로 자유롭게 확장할 수 있으며, 베젤이 거의 없는 매끄러운 화면 연출이 가능합니다. 고해상도 구현, 공간 효율성, 유지보수 편의성까지 모두 갖춘 프리미엄 실내용 디스플레이 솔루션입니다.
8k 초고해상도 지원으로
생생하고 선명한 화질 제공
높은 명암비로
색상 표현력 우수
높은 내구성
160도 이상의
넓은 시야각
우수한
에너지 효율
상세 모습 확인하기
- 픽셀 하나까지 선명하게
- 고화질·고품질 공간을 위한 프리미엄 LED 솔루션
COB Series Specifications
| Pixel Pitch | 0.78125mm | Panel Weight(kg) | 7 |
|---|---|---|---|
| LED Type | Mini 4-in-1 | Maintanance Mode | Front |
| Density(Dot/sqm) | 1,638,400 | Brightness Carlibration | Have |
| Module resolution | 192×216 | Brightness(Nits) | ≥600 |
| Module size(mm) | 150×168.75 | Color temperature(K) | 1000-18500 Optional |
| Panel Dimension (W×H×D/mm) | 600×337.5×27.5 | Viewing angle(V/H) | 170º/170º |
| Panel Resolution | 768×512 | Brightness/Color uniformity | ≥99.8% |
| Module QTY(W×H) | 4×2 | Power Consumption | Maximum: 420W/m² Average: 100W/m² |
| Cabinet material | Die-casting aluminum | Frame frequency | 50/60 |
| Contrast ratio | 10000 : 1 | Drive mode | 1/48 scan |
| Gray level | 16bit | Protection level | IP31 |
| Refresh rate(Hz) | 3840 | Power input | AC90-264V,47-63Hz |
| Working temperature/humidity(℃/RH) | -20~60 ℃/10%~85% | Stroage temperture/humidity(℃/RH) | -20~60 ℃/10%~85% |
| Certifications | CCC/CE/RoHS /FCC/CB/TUV/IEC |
COB Series Specifications
| Pixel Pitch | 0.9375mm | Panel Weight(kg) | 7 |
|---|---|---|---|
| LED Type | Mini 4-in-1 | Maintanance Mode | Front |
| Density(Dot/sqm) | 1,137,778 | Brightness Carlibration | Have |
| Module resolution | 320×180 | Brightness(Nits) | ≥600 |
| Module size(mm) | 300×168.75 | Color temperature(K) | 1000-18500 Optional |
| Panel Dimension (W×H×D/mm) | 600×337.5×48 | Viewing angle(V/H) | 170º/170º |
| Panel Resolution | 640×360 | Brightness/Color uniformity | ≥99.8% |
| Module QTY(W×H) | 2×2 | Power Consumption | Maximum: 420W/m² Average: 100W/m² |
| Cabinet material | Die-casting | Frame frequency | 50/60 |
| Contrast ratio | 10000 : 1 | Drive mode | 1/46 scan |
| Gray level | 16bit | Protection level | IP31 |
| Refresh rate(Hz) | 3840 | Power input | AC90-264V,47-63Hz |
| Working temperature/humidity(℃/RH) | -20~60 ℃/10%~85% | Stroage temperture/humidity(℃/RH) | -20~60 ℃/10%~85% |
| Certification | CCC/CE/RoHS /FCC/CB/TUV/IEC |
COB Series Specifications
| Pixel Pitch | 1.25mm | Panel Weight(kg) | 7 |
|---|---|---|---|
| LED Type | SMD1010 | Maintanance Mode | Front |
| Density(Dot/sqm) | 640,000 | Brightness Carlibration | Have |
| Module resolution | 240×135 | Brightness(Nits) | ≥600 |
| Module size(mm) | 300×168.75 | Color temperature(K) | 1000-18500 Optional |
| Panel Dimension (W×H×D/mm) | 600×337.5×48 | Viewing angle(V/H) | 170º/170º |
| Panel Resolution | 480×270 | Brightness/Color uniformity | ≥99.8% |
| Module QTY(W×H) | 2×2 | Power Consumption | Maximum: 420W/m² Average: 100W/m² |
| Cabinet material | Die-casting aluminum | Frame frequency | 50/60 |
| Contrast ratio | 10000 : 1 | Drive mode | 1/45 scan |
| Gray level | 16bit | Protection level | IP31 |
| Refresh rate(Hz) | 3840 | Power input | AC90-264V,47-63Hz |
| Working temperature/humidity(℃/RH) | -20~60 ℃/10%~85% | Stroage temperture/humidity(℃/RH) | -20~60 ℃/10%~85% |
| Certification | CCC/CE/RoHS /FCC/CB/TUV/IEC |
COB Series Specifications
| Pixel Pitch | 1.5625mm | Panel Weight(kg) | 7 |
|---|---|---|---|
| LED Type | SMD1010/1212 | Maintanance Mode | Front |
| Density(Dot/sqm) | 409,600 | Brightness Carlibration | Have |
| Module resolution | 192×108 | Brightness(Nits) | ≥600 |
| Module size(mm) | 300×168.75 | Color temperature(K) | 1000-18500 Optional |
| Panel Dimension (W×H×D/mm) | 600×337.5×48 | Viewing angle(V/H) | 170º/170º |
| Panel Resolution | 384×216 | Brightness/Color uniformity | ≥99.8% |
| Module QTY(W×H) | 2×2 | Power Consumption | Maximum: 420W/m² Average: 100W/m² |
| Cabinet material | Die-casting aluminum | Frame frequency | 50/60 |
| Contrast ratio | 10000 : 1 | Drive mode | 1/48 scan |
| Gray level | 16bit | Protection level | IP31 |
| Refresh rate(Hz) | 3840 | Power input | AC90-264V,47-63Hz |
| Working temperature/humidity(℃/RH) | -20~60 ℃/10%~85% | Stroage temperture/humidity(℃/RH) | -20~60 ℃/10%~85% |
| Certification | CCC/CE/RoHS /FCC/CB/TUV/IEC |
COB Series Specifications
| Pixel Pitch | 1.875mm | Panel Weight(kg) | 7 |
|---|---|---|---|
| LED Type | SMD1010/1515 | Maintanance Mode | Front |
| Density(Dot/sqm) | 284,444 | Brightness Carlibration | Have |
| Module resolution | 1608×90 | Brightness(Nits) | ≥600 |
| Module size(mm) | 300×168.75 | Color temperature(K) | 1000-18500 Optional |
| Panel Dimension (W×H×D/mm) | 600×337.5×48 | Viewing angle(V/H) | 170º/170º |
| Panel Resolution | 320×180 | Brightness/Color uniformity | ≥99.8% |
| Module QTY(W×H) | 2×2 | Power Consumption | Maximum: 420W/m² Average: 100W/m² |
| Cabinet material | Die-casting aluminum | Frame frequency | 50/60 |
| Contrast ratio | 10000 : 1 | Drive mode | 1/45 scan |
| Gray level | 16bit | Protection level | IP31 |
| Refresh rate(Hz) | 3840 | Power input | AC90-264V,47-63Hz |
| Working temperature/humidity(℃/RH) | -20~60 ℃/10%~85% | Stroage temperture/humidity(℃/RH) | -20~60 ℃/10%~85% |
| Certification | CCC/CE/RoHS /FCC/CB/TUV/IEC |

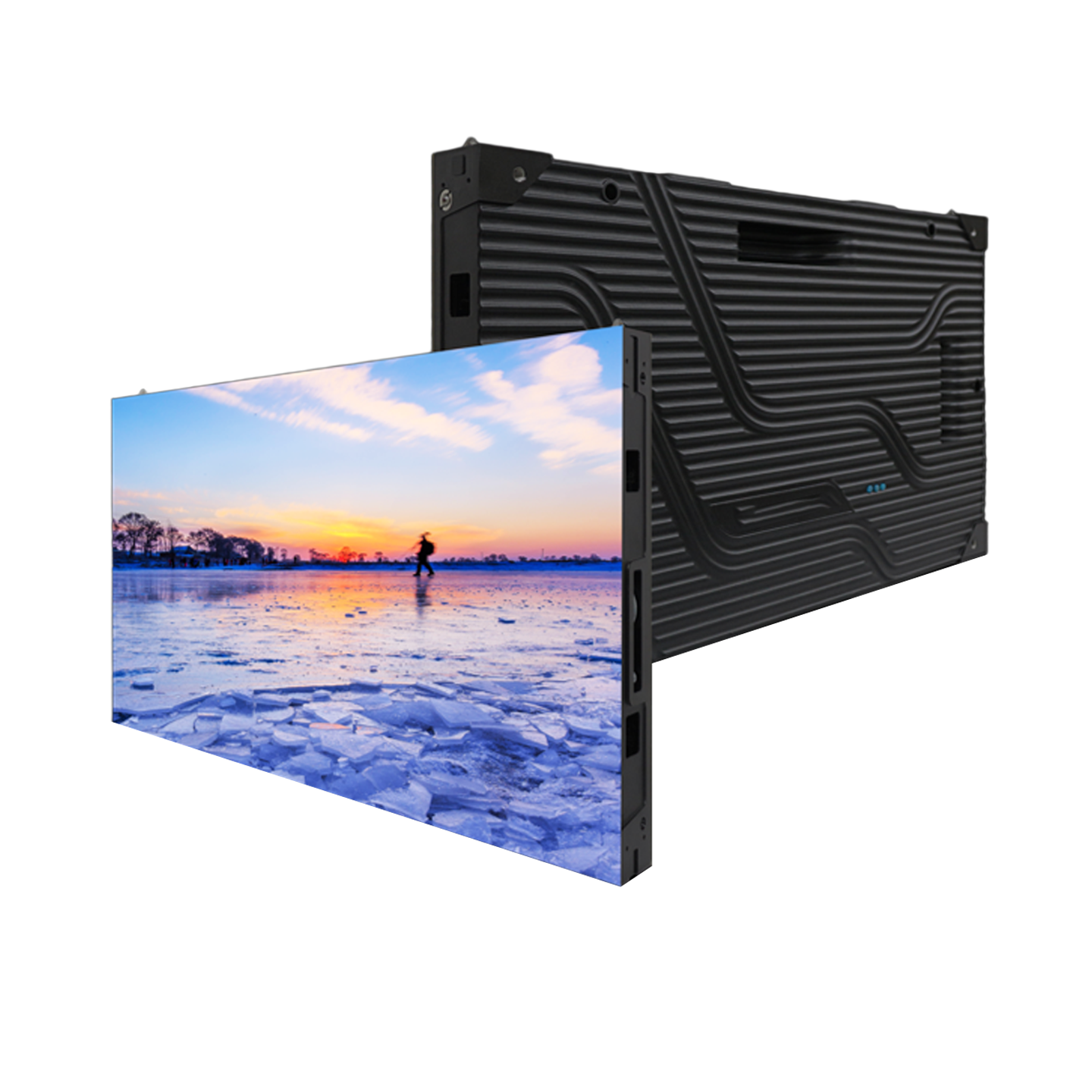

전면유지보수형 LED
슬림한 벽 밀착형 설치
Fine Pitch LED
Fine Pitch LED
전면 유지보수형 Fine Pitch LED는 픽셀 간격(Pitch)이 2.5mm 이하로 매우 촘촘하게 배열된 고해상도 실내용 디스플레이로, 선명하고 정밀한 화질을 구현합니다. 특히, 모듈을 전면에서 탈부착할 수 있는 구조를 채택하여, 벽 밀착형 설치 환경이나 유지보수가 어려운 제한된 공간에 최적화되어 있습니다. 슬림한 설계로 공간 활용도를 극대화하며, 1~2m 거리에서도 픽셀이 거의 보이지 않는 고해상도 시청 경험을 제공합니다.
또한 모듈형 구조로 다양한 크기와 형태의 맞춤형 디스플레이 구성도 가능하여 회의실, 쇼룸, 전시장, 지휘센터, 브랜드 존 등 고품질 영상이 요구되는 공간에 적합합니다.
상세 모습 확인하기
- 빠르고 간편한 유지보수
- 설치비용 절감과 운영 효율성 향상의 실질적 장점
COB Series Specifications
| Pixel Pitch | 0.78125mm | Panel Weight(kg) | 4.5 |
|---|---|---|---|
| LED Type | Mini 4-in-1 | Maintanance Mode | Front |
| Density(Dot/sqm) | 1,638,400 | Brightness Carlibration | Have |
| Module resolution | 192×216 | Brightness(Nits) | ≥600 |
| Module size(mm) | 150×168.75 | Color temperature(K) | 1000-18500 Optional |
| Panel Dimension (W×H×D/mm) | 600×337.5×27.5 | Viewing angle(V/H) | 170º/170º |
| Panel Resolution | 768×512 | Brightness/Color uniformity | ≥99.8% |
| Module QTY(W×H) | 4×2 | Power Consumption | Maximum: 420W/m² Average: 80W/m² |
| Cabinet material | Die-casting aluminum | Frame frequency | 50/60 |
| Contrast ratio | 10000 : 1 | Drive mode | 48/96 scan |
| Gray level | 16bit | Protection level | IP31 |
| Refresh rate(Hz) | 3840 | Power input | AC90-264V,47-63Hz |
| Working temperature/humidity(℃/RH) | -20~60 ℃/10%~85% | Stroage temperture/humidity(℃/RH) | -20~60 ℃/10%~85% |
| Certifications | CCC/CE/RoHS /FCC/CB/TUV/IEC |
COB Series Specifications
| Pixel Pitch | 0.9375mm | Panel Weight(kg) | 4.5 |
|---|---|---|---|
| LED Type | Mini 4-in-1 | Maintanance Mode | Front |
| Density(Dot/sqm) | 1,137,778 | Brightness Carlibration | Have |
| Module resolution | 160×180 | Brightness(Nits) | ≥600 |
| Module size(mm) | 150×168.75 | Color temperature(K) | 1000-18500 Optional |
| Panel Dimension (W×H×D/mm) | 600×337.5×27.5 | Viewing angle(V/H) | 170º/170º |
| Panel Resolution | 640×360 | Brightness/Color uniformity | ≥99.8% |
| Module QTY(W×H) | 4×2 | Power Consumption | Maximum: 420W/m² Average: 80W/m² |
| Cabinet material | Die-casting | Frame frequency | 50/60 |
| Contrast ratio | 10000 : 1 | Drive mode | 1/60 scan |
| Gray level | 16bit | Protection level | IP31 |
| Refresh rate(Hz) | 3840 | Power input | AC90-264V,47-63Hz |
| Working temperature/humidity(℃/RH) | -20~60 ℃/10%~85% | Stroage temperture/humidity(℃/RH) | -20~60 ℃/10%~85% |
| Certification | CCC/CE/RoHS /FCC/CB/TUV/IEC |
COB Series Specifications
| Pixel Pitch | 1.25mm | Panel Weight(kg) | 4.5 |
|---|---|---|---|
| LED Type | SMD1010 | Maintanance Mode | Front |
| Density(Dot/sqm) | 640,000 | Brightness Carlibration | Have |
| Module resolution | 120×135 | Brightness(Nits) | ≥600 |
| Module size(mm) | 150×168.75 | Color temperature(K) | 1000-18500 Optional |
| Panel Dimension (W×H×D/mm) | 600×337.5×27.5 | Viewing angle(V/H) | 170º/170º |
| Panel Resolution | 480×270 | Brightness/Color uniformity | ≥99.8% |
| Module QTY(W×H) | 4×2 | Power Consumption | Maximum: 420W/m² Average: 80W/m² |
| Cabinet material | Die-casting aluminum | Frame frequency | 50/60 |
| Contrast ratio | 10000 : 1 | Drive mode | 1/60 scan |
| Gray level | 16bit | Protection level | IP31 |
| Refresh rate(Hz) | 3840 | Power input | AC90-264V,47-63Hz |
| Working temperature/humidity(℃/RH) | -20~60 ℃/10%~85% | Stroage temperture/humidity(℃/RH) | -20~60 ℃/10%~85% |
| Certification | CCC/CE/RoHS /FCC/CB/TUV/IEC |
COB Series Specifications
| Pixel Pitch | 1.5625mm | Panel Weight(kg) | 4.5 |
|---|---|---|---|
| LED Type | SMD1010/1212 | Maintanance Mode | Front |
| Density(Dot/sqm) | 409,600 | Brightness Carlibration | Have |
| Module resolution | 96×108 | Brightness(Nits) | ≥600 |
| Module size(mm) | 150×168.75 | Color temperature(K) | 1000-18500 Optional |
| Panel Dimension (W×H×D/mm) | 600×337.5×27.5 | Viewing angle(V/H) | 170º/170º |
| Panel Resolution | 384×216 | Brightness/Color uniformity | ≥99.8% |
| Module QTY(W×H) | 4×2 | Power Consumption | Maximum: 420W/m² Average: 80W/m² |
| Cabinet material | Die-casting aluminum | Frame frequency | 50/60 |
| Contrast ratio | 10000 : 1 | Drive mode | 1/48 scan |
| Gray level | 16bit | Protection level | IP31 |
| Refresh rate(Hz) | 3840 | Power input | AC90-264V,47-63Hz |
| Working temperature/humidity(℃/RH) | -20~60 ℃/10%~85% | Stroage temperture/humidity(℃/RH) | -20~60 ℃/10%~85% |
| Certification | CCC/CE/RoHS /FCC/CB/TUV/IEC |
실내용 각도조절 RENTAL
유연한 설치
다양한 환경에 최적화
다양한 환경에 최적화
설치 환경에 따라 LED 디스플레이의 각도를 자유롭게 조정할 수 있도록 설계된 렌탈 전용 구조물입니다. 이동성과 구조적 안정성을 모두 갖춘 모듈형 프레임을 기반으로, 단시간 내 설치가 가능하며, 관객의 시야와 시청 경험을 극대화 합니다. 불규칙한 지형이나 다양한 무대 레이아웃에서도 최적의 솔루션을 제공합니다.
상세 모습 확인하기
- 어떤 각도든 자유롭게, 최적의 시야각 확보
- 현장 맞춤형 실내각도조절 렌탈 솔루션
Specifications
| Pixel Pitch | 1.25mm | Module weight | 0.51kg |
|---|---|---|---|
| LED type | SMD2121 | Module port | HUB75 |
| Pixel configuration | 1/1/1 | Module working voltage | 5 |
| Display resolution | 9216 | Module consumption | ≤30 |
| Every square metre module | 16 PCS | Maximum power | ≤500 |
| Equilibrium brightness | 650-1100 | Current | 5 |
| power waste | 500-750 W/ m² | Drive Mode | 1/32 Scan |
| luminous attenuation | ＜3% | Leakage current | ＜3mA |
| Lamp failure frequenc | ＜0.0001 | Working temperature/humidity(℃/RH) | -10~60 ℃/10%~70% |
| Display working voltage | 220V±15%/110V±15% | Power input | AC46-5HZ |
Specifications
| Pixel Pitch | P2.976mm | Module weight | 0.558kg |
|---|---|---|---|
| LED type | SMD1515 | Module port | HUB75 |
| Pixel configuration | 1/1/1 | Module working voltage | 5 |
| Display resolution | 7056 | Module consumption | ≤30 |
| Every square metre module | 16 PCS | Maximum power | ≤500 |
| Equilibrium brightness | 650-1200 | Current | 5 |
| power waste | 500-700 W/ m² | Drive Mode | 1/28 Scan |
| luminous attenuation | ＜3% | Leakage current | ＜5mA |
| Lamp failure frequenc | ＜0.0001 | Working temperature/humidity(℃/RH) | -10~60 ℃/10%~70% |
| Display working voltage | 220V±15%/110V±15% | Power input | AC46-5HZ |
Specifications
| Pixel Pitch | P3.91mm | Module weight | 0.558kg |
|---|---|---|---|
| LED type | SMD2121 | Module port | HUB75 |
| Pixel configuration | 1/1/1 | Module working voltage | 5 |
| Display resolution | 4096 | Module consumption | ≤30 |
| Every square metre module | 16 PCS | Maximum power | ≤500 |
| Equilibrium brightness | 650-1100 | Current | 5 |
| power waste | 500-700 W/ m² | Drive Mode | 1/16 Scan |
| luminous attenuation | ＜3% | Leakage current | ＜3mA |
| Lamp failure frequenc | ＜0.0001 | Working temperature/humidity(℃/RH) | -10~60 ℃/10%~70% |
| Display working voltage | 220V±15%/110V±15% | Power input | AC46-5HZ |
